RCM Publisher Server

The RCM Publisher Server provides an interface for "third party" applications to access the LiveTiming data in real-time.

Application purposes are for example:

  • Live race data overlay for RC Racing TV (video live stream)
  • Local access to LiveTiming data for the myRCM iPhone application
  • Local access to LiveTiming data for the myRCM Android application

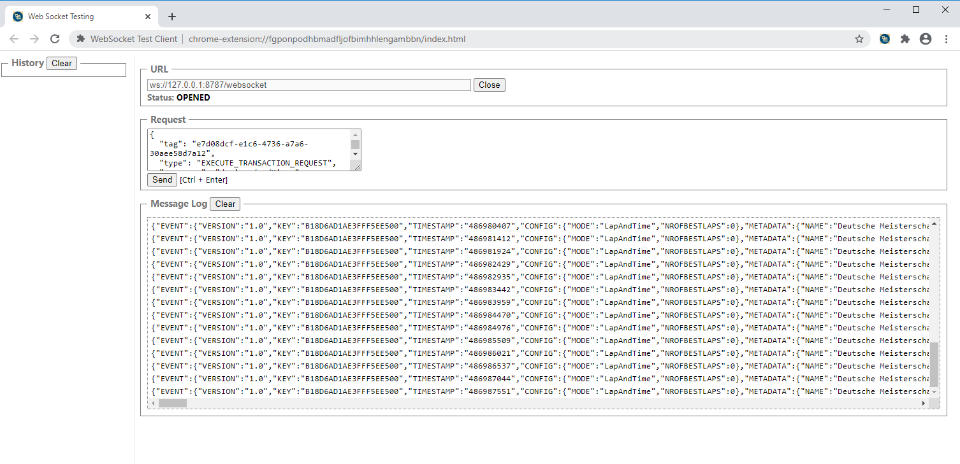

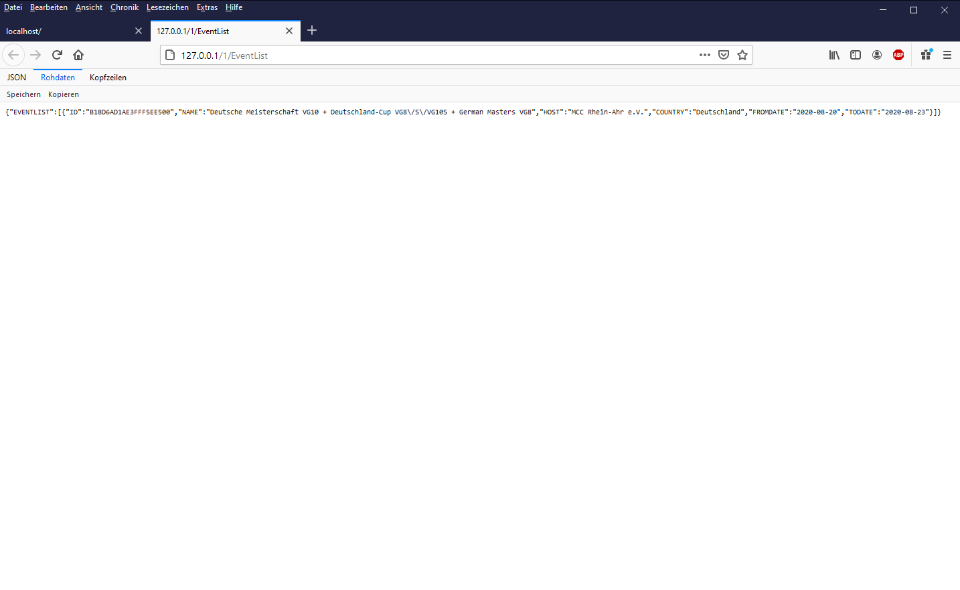

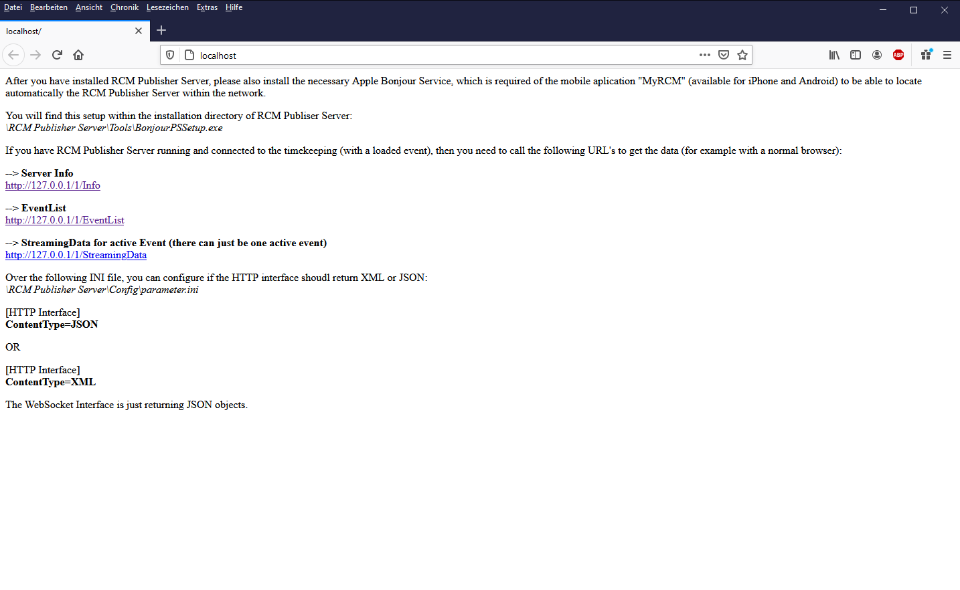

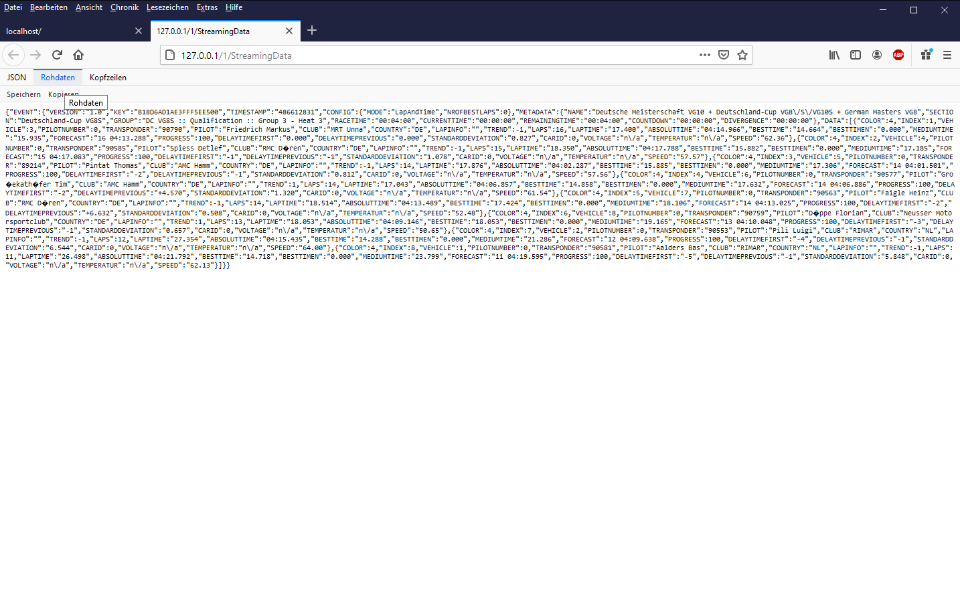

RCM Publisher Server has a HTTP Interface and provides either JSON or XML data (Eventlist, LiveTiming data). In additional RCM Publisher Server has a Websocket interface, over which the live timing data are pushed to the clients.

RCM Publisher Server can be connected to the following applications:

  • RCM Ultimate
  • RCM Professional
  • RCM Advanced

Performance Overview

  • HTTP Interface with JSON or XML support
  • WebSocket Interface with JSON support

License terms

Information about the license terms can be found on the following page: License terms

Hardware requirements

Supported operating system:

  • Windows Vista
  • Windows 7
  • Windows 8 / 8.1
  • Windows 10

Please install RCM into the directory which is suggested by the setup (if RCM is installed under "C:\Program Files", problems can occure)

Minimal requirements:

  • Prozessor: Pentium IV with 1.6 GHz (or more)
  • Memory: 1 GB or more
  • Diskspace: 2 GB or more


A demo version of RCM Publisher Server can be downloaded over our website. In order to use this demo version, you must register yourself through our website to receive the required demo license keys. You can find the registration here


The usermanuals as well as other product specific documents can be downloaded here
